BodyBilt Arm Styles:
BodyBilt S'port Arm Styles:
|
BodyBilt's large selection of armrest options is one of the many things that distinguishes BodyBilt seating.
All BodyBilt chairs, which have arms, will ship with Standard "T" arms. Upgrade replacement arms are included separately in shipments.
Recommendations On selecting an arm style:
Please note that Bodybilt also allows for individual ordering of the right and left arms which can be different depending on the task for each arm. Most users will order the same arm type forb both sides, but we wanted to make you aware that you had the option to do differently if you desired to do so.
For big and tall users, we recommend a S'port armrest upgrade. Our experience is that big and tall users prefer the additional forearm support offered by the S'port armrests.
For "pear-shaped" users with wide hips, we recommend a Pivot! armrest upgrade. The Pivot! arm allows you to increase the width of the armrest posts, while maintaining the proper width of the armrest pads. This reduces or eliminates pressure from sitting against the armrest posts.
For workers performing extensive mousing, typing, or data entry tasks, the Linear Tracking Arm relieves static loading in key muscle groups reducing the risk of repetitive stress injuries (RSI) such as Carpal Tunnel Syndrome. This is accomplished by supporting the forearm while "tracking" along with the users movements in any direction within a 2-dimensional plane. Of course height can also be adjusted manually when desired.
Note:
All S'port and Super S'port armrest upgrades can also be ordered (at no additional cost) with the arm pad upholstered. You can choose to have the arm pads upholstered to match the chair's upholstery, but we recommend that you select black Finesse upholstery (BodyBilt's standard high-quality synthetic leather) because 1) Finesse upholstery is the easiest to clean, and 2) some users are sensitive to leaning against textured fabrics.
|
Standard 4-Arms
Created by Zooey Chu, of Synergy Product Development, one of the most respected designers in the ergonomic industry, the new 4 arm™ has become the new standard armrest for the BodyBilt line, and has raised the standard for all other chairs.
The distinctive styling of the new 4 arm complements our BodyBilt models in appearance and function with 4 remarkably simple, and, with its cast aluminum support structure and the soft touch arm pads, the 4arm, is also very durable having passed numerous industry tests.
Standard 4-Arm Specs.
|
Length |
|
10.00" |
Width |
|
4.00" |
Fore/Aft Articulation |
|
7 Deg. |
Width Range: |
|
3.00" |
Height Range |
|
4.50" |
Angle Range |
|
360 Deg. |
|
|

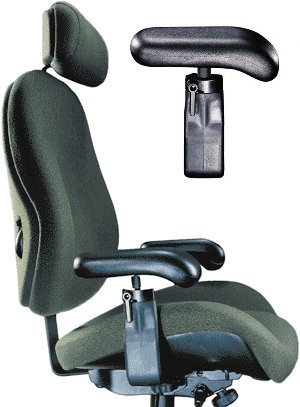

Veritask Arms was "Standard T-Arms"
BodyBilt's Veritask arms use black polyurethane arm pads.
Matching upholstered arm pads are available as an armrest upgrade.
Veritask Arm Specs.
|
Length |
|
10.00" |
Width |
|
4.00" |
Height Range |
|
4.00" |
Angle Range |
|
360 Deg. |
|
|

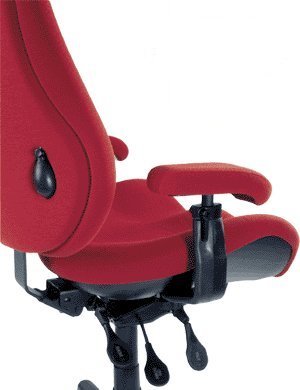

Upholstered Veritask Arms
BodyBilt's Upholstered arm pads are covered in the upholstery you select for the rest of your chair.
If you select leather upholstery you should select matching armrests.
Upholstered Veritask Specs.
|
Length |
|
10.00" |
Width |
|
4.00" |
Height Range |
|
4.00" |
Angle Range |
|
360 Deg. |
|
|

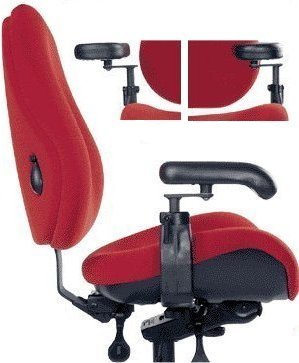

Pivot! Arm
BodyBilt's standard Pivot! arm uses the standard black polyurethane arm pad. Upholstered Pivot! arm pads are covered in the upholstery you select for the rest of your chair.
Pivot! Arm Specs.
|
Length |
|
10.00" |
Width |
|
4.00" |
Height Range |
|
4.00" |
Angle Range |
|
360 Deg. |
|
|

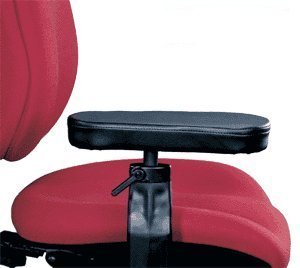

S'port Arm
If you select leather upholstery you should select matching armrests.
S'port Arm Specs.
|
Length |
|
12.00" |
Width |
|
5.00" |
Height Range |
|
4.00" |
Angle Range |
|
360 Deg. |
|
|

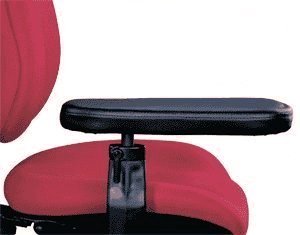

Super S'port Arm
BodyBilt's Super S'port arms ofer a longer armrest area.
- M1 Option: pad is forward mounted on the "T" arm post
; for use with number SIX and EIGHT seat styles.
Super S'port T-Arm Specs.
|
Length |
|
16.00" |
Width |
|
5.00" |
Height Range |
|
4.00" |
Angle Range |
|
360 Deg. |
|

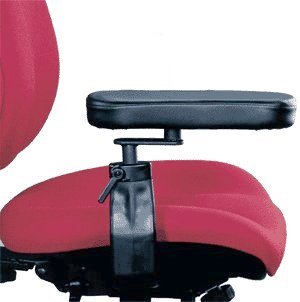

S'port Pivot! Arm
Super S'port Pivot! Arm Specs.
|
Length |
|
16.00" |
Width |
|
5.00" |
Height Range |
|
4.00" |
Mini S'port Pivot! Arm Specs.
|
Length |
|
7.00" |
Width |
|
5.00" |
Height Range |
|
4.00" |
Standard S'port Pivot! Arm Specs.
|
Length |
|
12.00" |
Width |
|
5.00" |
Height Range |
|
4.00" |
Recommend for "pear-shaped" users.
The Pivot! arm allows you to increase the width of the armrest posts, while maintaining the proper width of the armrest pads. This reduces or eliminates pressure from sitting against the armrest posts.
Standard Pivot! arm uses the standard black polyurethane arm pad. Upholstered Pivot! arm pads are covered in the upholstery you select for the rest of your chair.
|
|

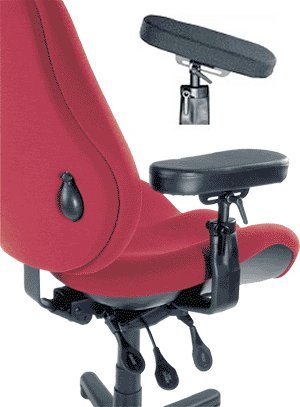

S'port SlideRite Arms
Both S'port SlideRite arms can either be upholstered to match your chair or upholstered with black Finesse (a high-quality synthetic leather). Bodybilt recommends Finesse, because it is comfortable and more easily cleaned than most fabrics.
S'port SlideRite Arm Specs.
|
Length |
|
12.00" |
Width |
|
5.00" |
Height Range |
|
4.00" |
Super S'port SlideRite Arm Specs.
|
Length |
|
16.00" |
Width |
|
5.00" |
Height Range |
|
4.00" |
|
|

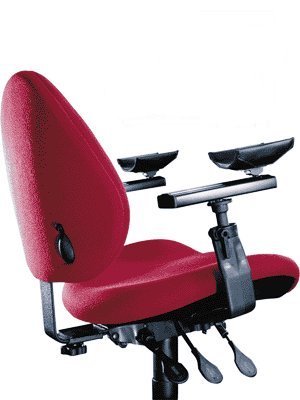

Linear Tracking Arm
BodyBilt's Linear Tracking arms come with either the support arm cuff (considered standard) or the circular arm pad as an option.
For workers performing extensive mousing, typing, or data entry tasks, the Linear Tracking Arm relieves static loading in key muscle groups reducing the risk of repetitive stress injuries (RSI) such as Carpal Tunnel Syndrome. This is accomplished by supporting the forearm while "tracking" along with the users movements in any direction within a 2-dimensional plane. Of course height can also be adjusted manually when desired.
Linear Tracking Arm Specs.
|
Cuff Length |
|
5.00" |
Cuff Width |
|
4.75" |
Height Range |
|
4.00" |
Horizontal Range |
|
6.00" |
Angle Range |
|
360 Deg. |
|
|
