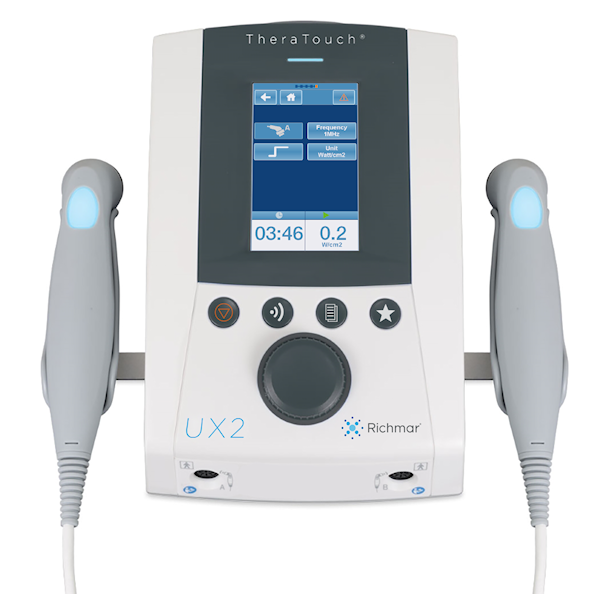

Richmar Theratouch UX2 Ultrasound | Pulsed & Continuous

Professional Therapeutic Ultrasound Theratouch UX2 by Richmar

< >

Therapeutic Pulsed or Continuous Ultrasound with Theratouch UX2r

Highest Quality, USA made, Therapeutic Intelligent Ultrasound

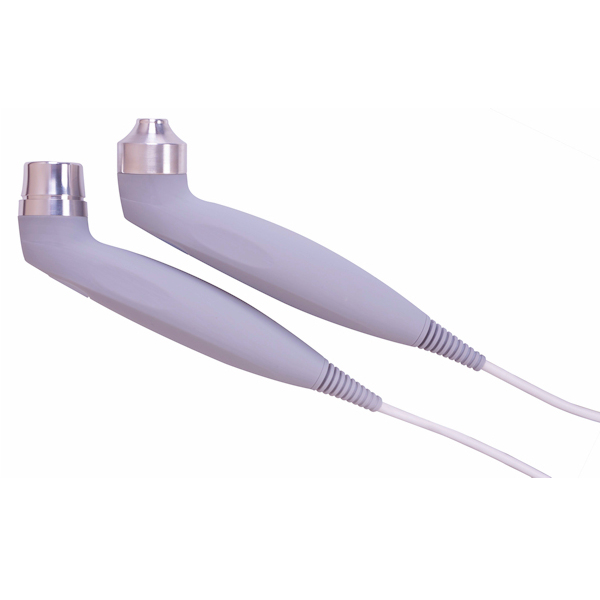

Includes 1cm & 5cm Soundhead Transducer Probes

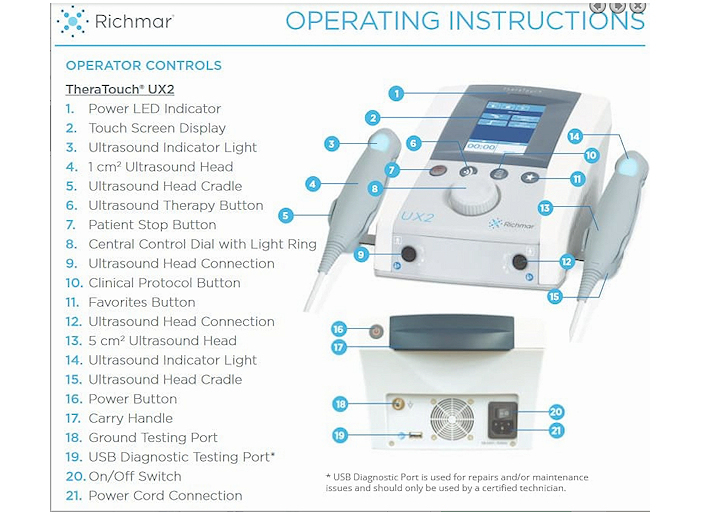

Overview of Highlights & Operation of the Theratouch UX2 Ultrasound Device

Equipped with a menu-driven, color touchscreen interface that intuitively groups and displays clinical protocols, guiding clinicians step-by-step to ensure the ideal therapeutic treatment.

Appropriate parameter settings
Ultrasound applicator recommendations
Dual-holster design to accommodate both size applicators
Ergonomic designed sound head provides for an excellent ERA

A few simple key presses are all that is needed to quick-start a treatment. Parameters can be easily selected and adjusted. Clinicians can choose to use preset clinical protocols or customize their own. The “favorites” feature allows user-defined protocols to be stored for future use. The UX2 offers a comprehensive library with treatment education for better treatment outcomes and improved clinic efficiency.

FEATURES:

Comprehensive Library Provides Treatment Education
Sleek, User-Friendly, Ergonomic Design for Tabletop or Therapy Cart Use
Large, Easy-to-Read, Color LCD Display with Touch Screen Interface
Clinical Protocols Provide Parameters for a Variety of Acute and Chronic Conditions
“Favorites” Feature Allows Storage Up to 99 Custom Programs for Future Use
1 and 3 MHz Ultrasound Frequencies
Pulsed and Continuous Modes
Comes with 1 cm2 and 5 cm2 Applicators
Low BNR Ratio 5:1
Ultrasound Amplitude Can Be Toggled Between W and W/cm2
Sound Head Coupling Feature

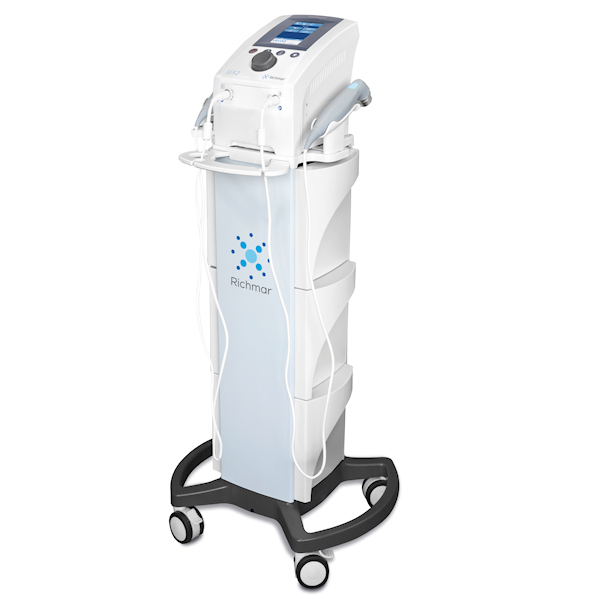

Optional Therapy Cart Integrates with the Unit and Keeps Supplies Organized and Ready for Treatments

TECHNICAL SPECIFICATIONS

Number of Channels: 4, Isolated
Treatment Time: 1 - 60 min, adjustable
Power Supply: 100–240 VAC, 50-60 Hz
Duty Factor: (L, M, H): 30%, 40%, 50%
Dimensions: 11.25" x 7.75" x 9.5"
Weight: 5 lbs.

ULTRASOUND

Frequency: 1 and 3 MHz
Duty Cycles: Pulsed and Continuous
Pulse Frequency: 100 Hz
Pulse Duration: 1–9 mSec ± 10% (set by Duty Cycle)
Ramp (Fixed): 1s
Treatment Time: 1 - 60 minutes

Shopping Cart Questions

Product Notes:

LS5255 - TheraSonic Conductive Gel 5 liters(1.32 gal. with Dispenser)

Free Shipping
LS5266 - TheraSonic Conductive Gel 16 oz. Bottle

Free Shipping
LS5288 - TheraSonic Conductive Gel 8oz. Bottle

Free Shipping
UX2 - Advanced TheraTouch UX2 Ultrasound Digital

Includes 1cm & 5cm Soundheads
